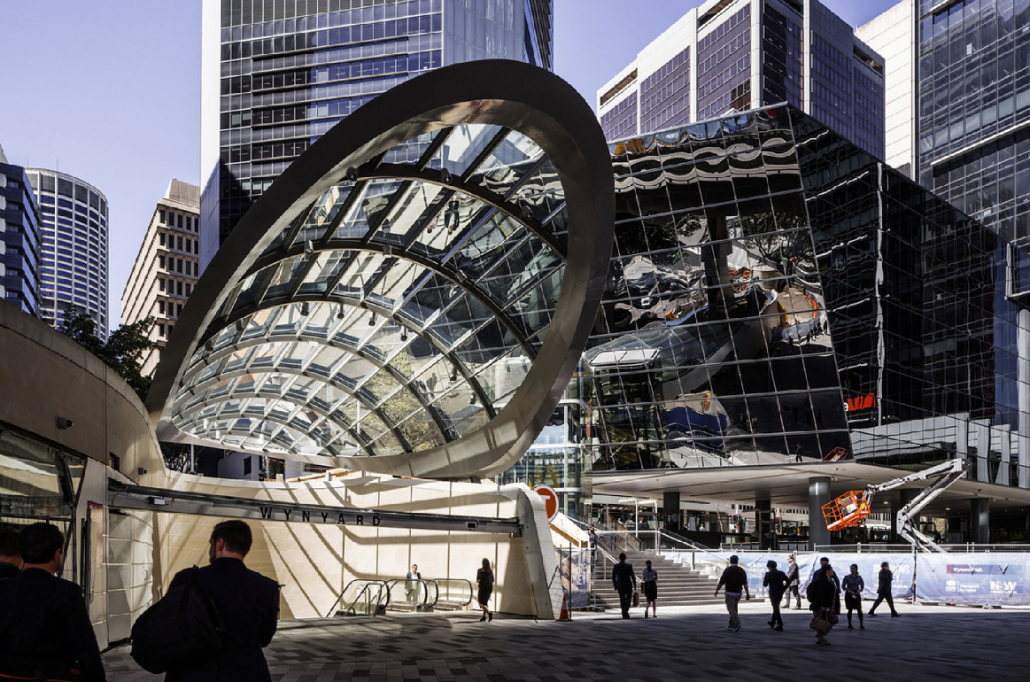

Project 1. Wynyard Walk Canopy

This project is a creative steel Structure canopy in the heart of Sydney city.

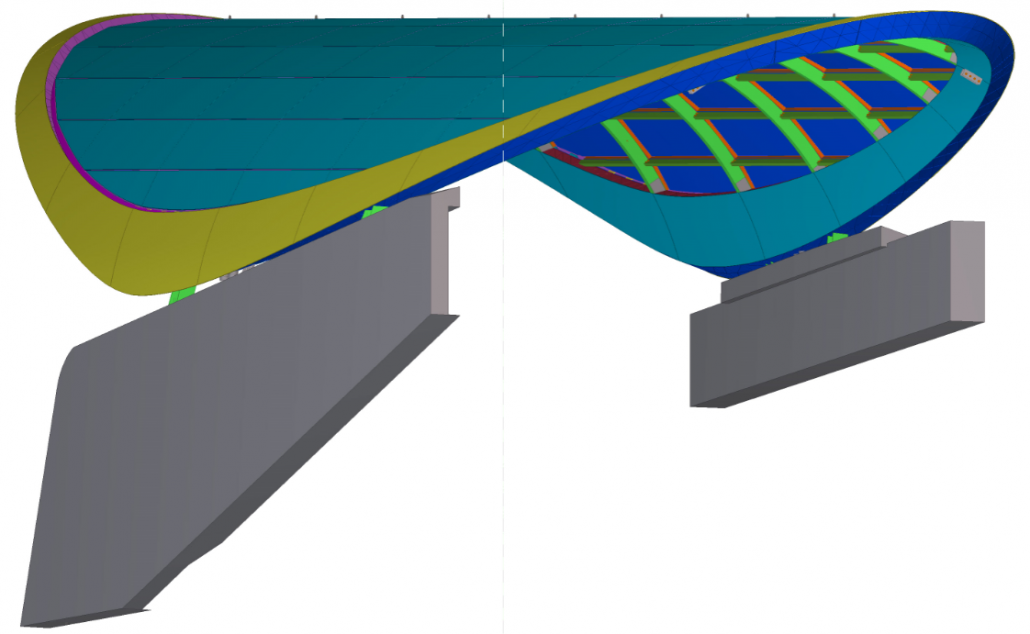

All the structure seel elements are exposed. Connection detail was designed to be invisible. The perimeter ring beam was made from fabricated boxed plates Curved in two directions.

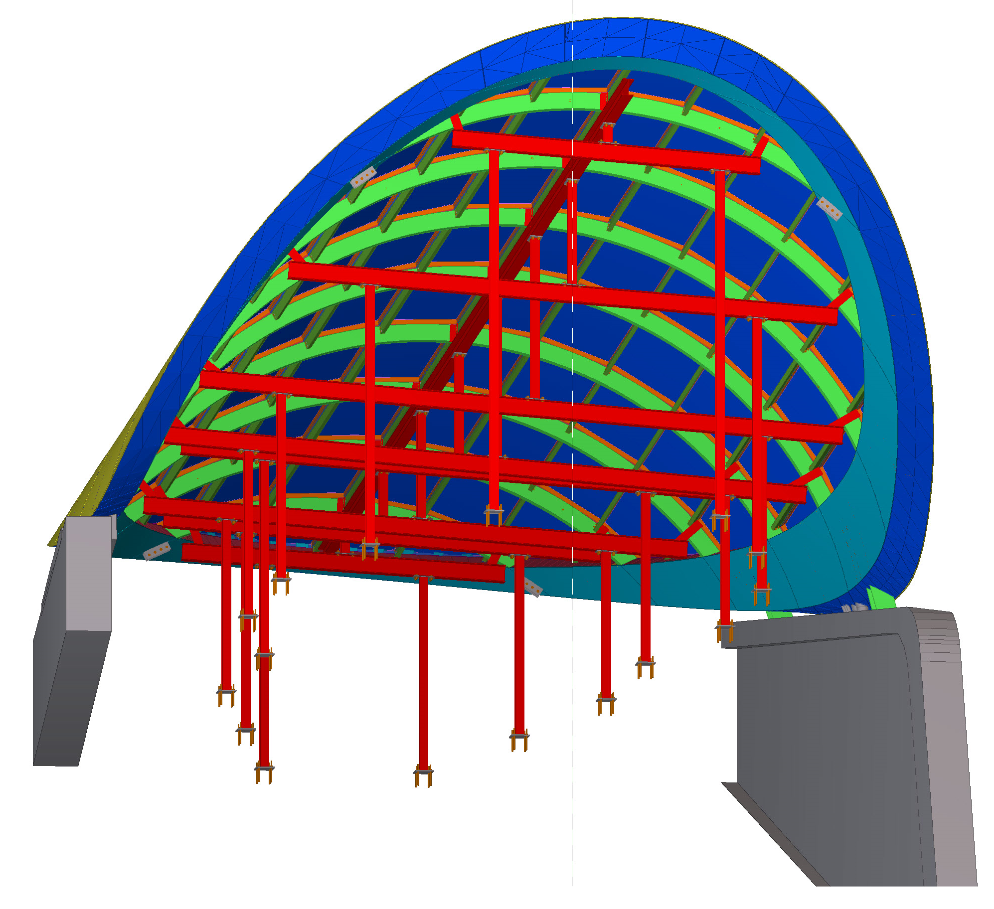

A specially fabricated secondary structure was designed and fabricated to enable the assembly.

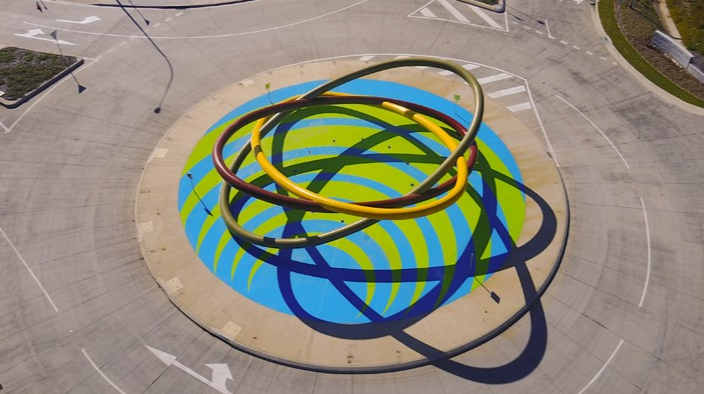

Project 2. Glendale Interchange sculpture

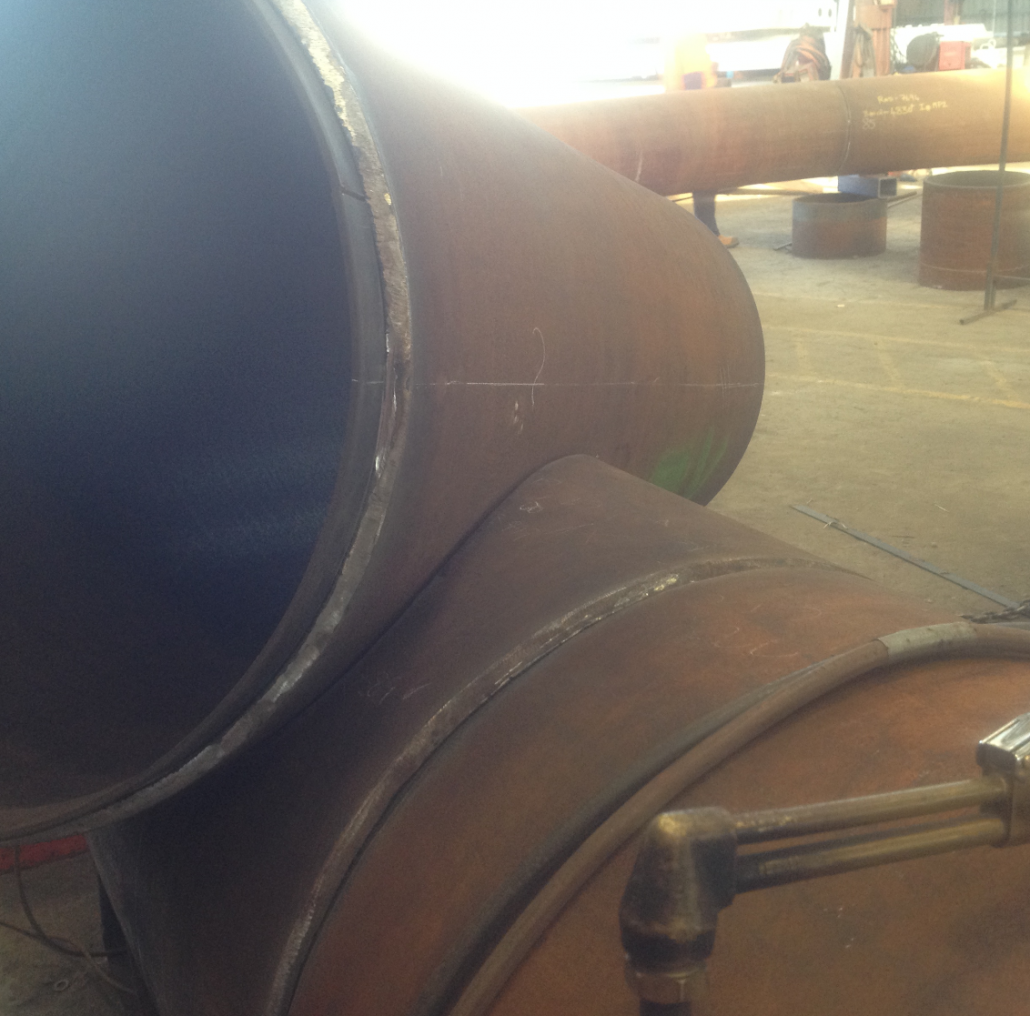

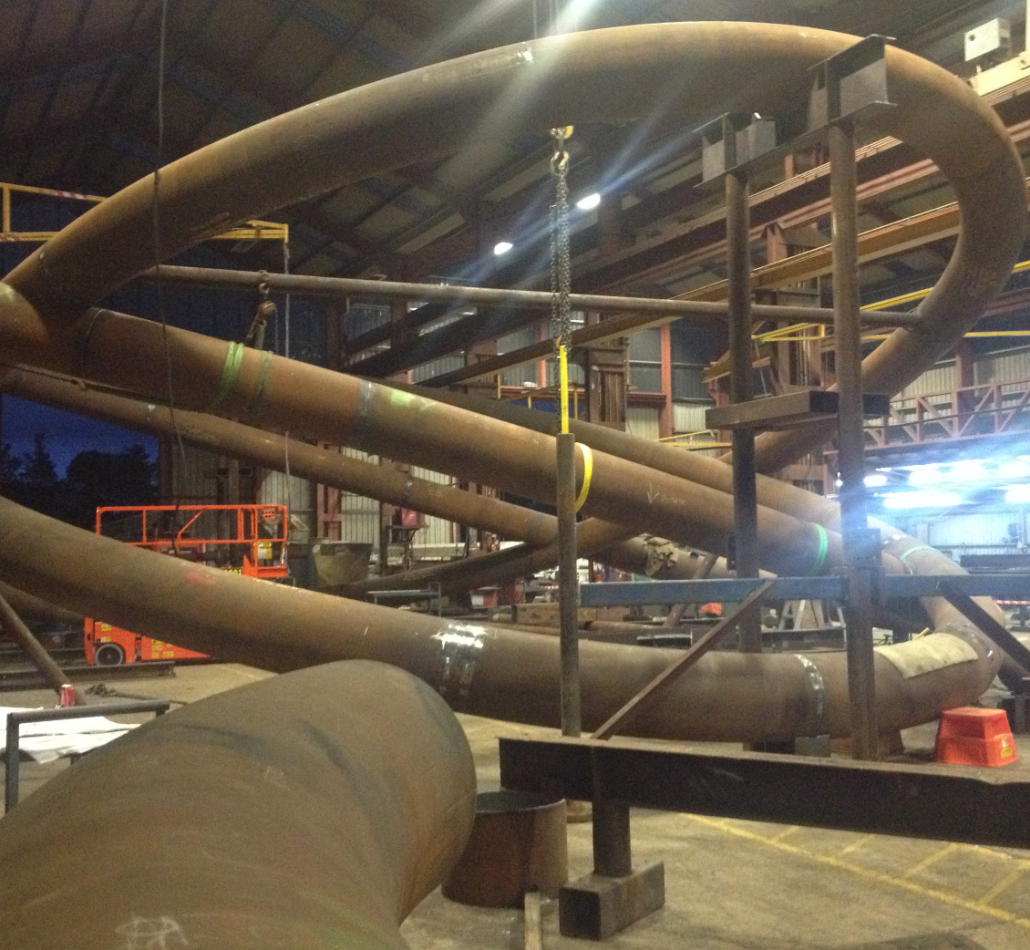

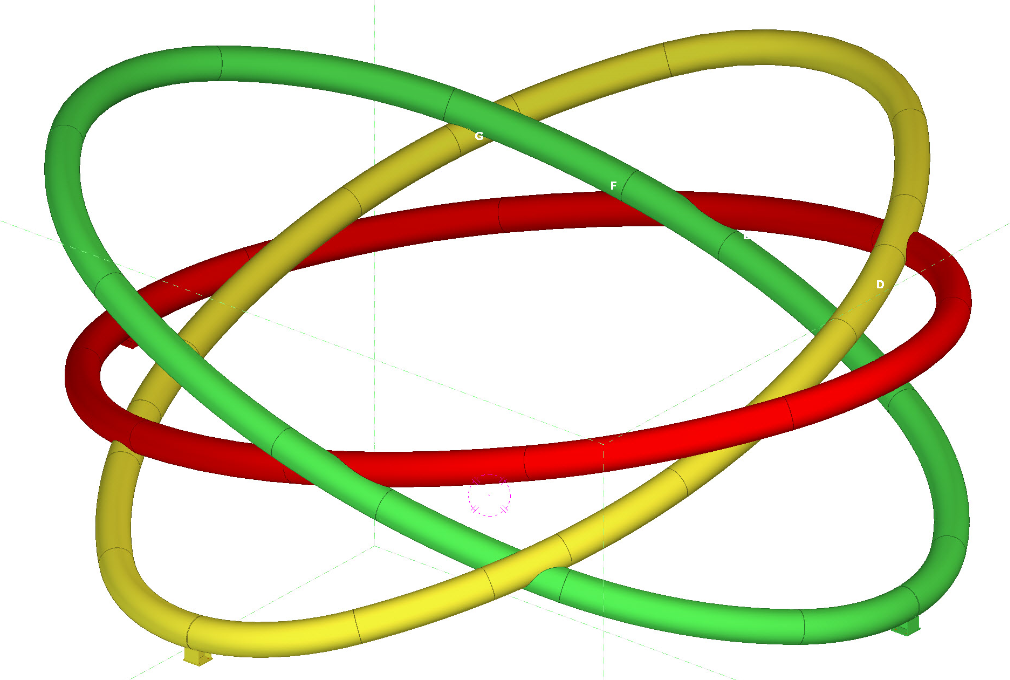

This project is made of three large elliptical rings which intersect together. Each ring is made of an ellipse, 12 meters in the minor axis and 18 metres in the major axis. The cross section is made of 610CHS*12.7.

The sculpture symbolises the dynamic hub that is emerging at Glendale, bringing together employment, community and transport assets.
